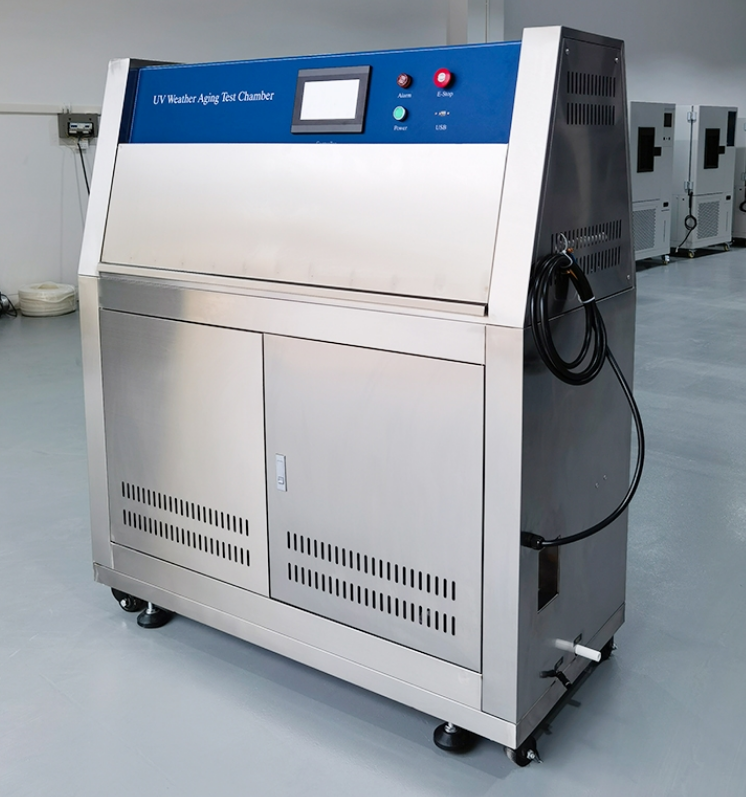

UV Test Chamber for Material Weathering - 3x Faster Results
Product Description:
This UV accelerated aging test chamber simulates damage caused by sunlight, rain, and dew. It exposes test materials to controlled cycles of UV radiation, moisture, and temperature to replicate outdoor weathering effects in a fraction of the time.
How It Works:
- UV Lamps simulate solar radiation (UVA-340 for sunlight accuracy).
2. Condensation & Spray Systems replicate dew and rain exposure.
3. Accelerated Testing reproduces months or years of outdoor degradation in just days or weeks.
Detectable Material Degradation:
✔ Color fading & shifts
✔ Loss of gloss
✔ Chalking
✔ Cracking & crazing
✔ Blistering & wrinkling
✔ Brittleness & strength loss
✔ Oxidation
Applications:
- New material selection
2. Improving existing materials
3. Evaluating formula changes
Compliant with: ASTM G154, ISO 4892, SAE J2020
Key Features:
✅ Fast Results – Predict long-term durability in days
✅ Precise Control – Adjustable UV intensity, temperature & moisture cycles
✅ Industry-Proven – Trusted by automotive, coatings & plastics manufacturers
Technical Specifications:
1. Test Chamber Dimensions: 650×1140×550mm (D×W×H)
2. Overall Machine Dimensions: 700×1300×1640mm (D×W×H)
3. Temperature Uniformity: ≤±2℃
4. Temperature Fluctuation: ≤±0.5℃
5. Temperature Range: RT+10℃ to 70℃
6. Humidity Range: ≥95% RH
7. Distance Between Lamps: 35mm D
8. istance from Samples to Lamps: 50mm
9. Lamp Type: UVA-340
10. Number of Lamps: 8
11. Lamp Lifespan: Approx. 1000 hours
12. Controller Features: Displays wavelength values Monitors remaining lamp life
Power Supply & Installation Requirements:
Operating Voltage: AC 220V ±10%, 50Hz
Installation Environment: Must be placed on a level surface (no inclination allowed) Maintain 60cm clearance around the equipment (no obstructions)
Safety Notes: ⚠ Ensure proper grounding and stable power supply to prevent equipment damage.
Company Information:
Neide located in Dongguan, Guangdong province with convenient transportation access. We take immense pride in our journey of excellence as a premier provider of top-quality testing equipment. With our unwavering commitment to innovation, we specialize in crafting cutting-edge environmental test chambers and mechanical test machines.
Our extensive range includes temperature and humidity chambers, thermal shock test chambers, tensile testing machines, and vibration test machines. What sets us apart is our proficiency in creating customized testing equipment tailored to your specific needs.
At the heart of our operations lies a dedication to precision and compliance. Our products are engineered to meet and exceed international standards, such as ISO, ASTM, DIN, EN, GB, BS, JIS, AMSI, UL, TAPPI, AATCC, and IEC.
This ensures that our solutions not only adhere to industry benchmarks but set new standards of excellence. Our services and products find applications across diverse sectors, including R&D institutions, quality inspection establishments, universities, and electronics and communications industries.
